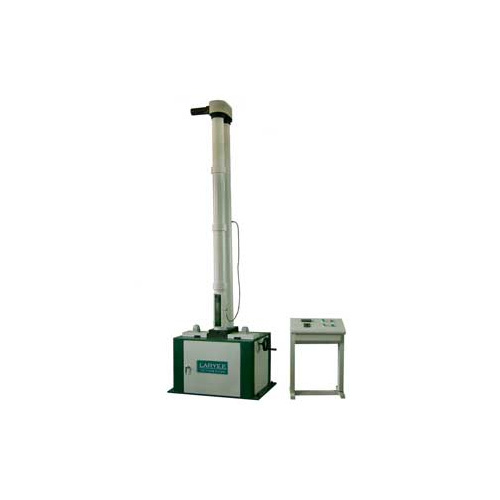

Falling Drop Dart Impact Tester Machine
Product Details:
- Product Type Drop Dart Impact Tester Machine
- Dimension (L*W*H) 5004702230 Nanometer (nm)
- Temperature 10-35 Celsius (oC)
- Voltage 220V Volt (v)
- Control Mode PLC
- Click to View more
X
Falling Drop Dart Impact Tester Machine Price And Quantity
- 1 Unit
Falling Drop Dart Impact Tester Machine Product Specifications
- Drop Dart Impact Tester Machine
- 10-35 Celsius (oC)
- 220V Volt (v)
- PLC
- 5004702230 Nanometer (nm)
Falling Drop Dart Impact Tester Machine Trade Information
- Cash in Advance (CID)
- 10 Unit Per Month
- 5-7 Days
- All India
Product Description
Parameter
Model | FIT1130 |
Dart head weight | method A:50g-660g 660g-2000g |
Dart head weight | method B:300g-1400g 1400g-2000g |
Incremental weight | method A:min 5g;method B:min 15g |
Radius of dark head | method A:R190.5mm;method B:R250.5mm |
Impacting height | method A:66010mm;method B:150010mm |
Specimen clamp | inside diameter 1252mm;outside diameter 1503mm |
The thickness of specimen | less than 1.0mm |
Maximum impact energy | 30j |
Maximum impact height | 1500mm |
The type of prevent second impact | pneumatic power:pneumatic power less than 0.6Mpa |
Controller | PLC |
Indicate | LCD text |
Power supply | AC220V,50Hz |
Working environment | 10-35 |
Dimension | 5004702230 |
