CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor
2000 USD ($)/Number
Product Details:
- Product Type Glass flow reactor
- General Use chemical research
- Material Other
- Capacity 6 Milliliter (ML)
- Computerized No
- Automatic No
- PLC Control Yes
- Click to View more
X
CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor Price And Quantity
- 2000 USD ($)/Number
- 5000.00 - 50000.00 USD ($)/Number
- 1 Unit
CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor Product Specifications
- Other
- Glass flow reactor
- 6 Milliliter (ML)
- Low Energy Consumption
- Other
- 1 year
- No
- Other
- No
- Customize
- chemical research
- Yes
CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor Trade Information
- Tianjin
- Telegraphic Transfer (T/T)
- 10 Unit Per Month
- 2 Months
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East
- All India
Product Description
Summary

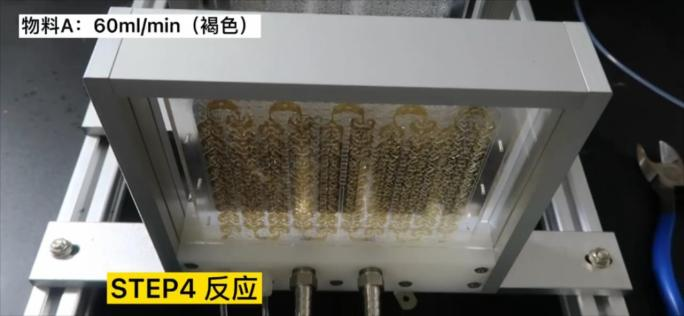

The CM-D series continuous flow reactors is a high-throughput glass microreactor processed from high borosilicate float glass. The four-layer structure design includes the heat exchanger in the reactor to reduce the space occupancy rate. The design of the structure ensures the maximization of mixing efficiency, so that the reaction phase forms multiple vortex staggered states in the reaction phase, and ensures that the reaction phase is fully mixed and reacted in the flow channel.
The CM-D series glass microchannel reactor is compatible with all reagents except hot concentrated alkali, molten alkali metal, hot concentrated H3PO4, HF, and strong corrosive agents. It can operate stably for a long time. The excellent high light transmittance can achieve short wavelength Photocatalytic reaction. Compared with the traditional tubular catalysis, the microreactor can also increase the catalysis conditions and promote the formation of reactants through the application of the heat exchange layer.
Salient features of CM-D glass flow reactor
Available in integrated multilayer glass construction for mixing, reaction & heat transfer

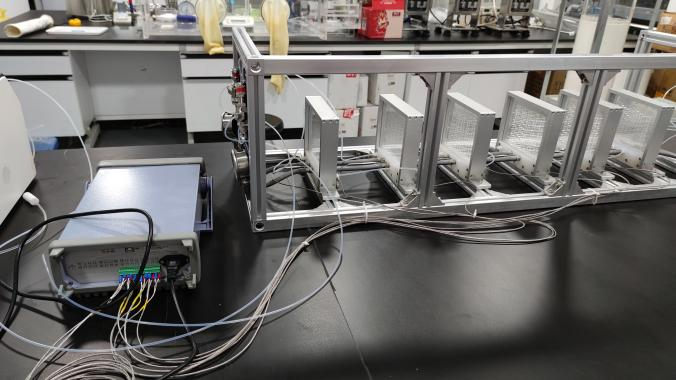

Micro channel with modular system to connect multiple reactors in series or parallel
Suitable for various liquid-liquid, gas-liquid homogeneous & multi phase reactions
Microreactors from glass, quartz, silicon and glass-silicon compounds
Useful in photochemical & UV induced reactions
Specially designed micro reactors used in various photochemical and UV induced reactions.
Specifications
| CM-DKilo-scale Continuous Flow Microchannel Reactors | |||
| Model | CM-D-M(HT) | CM-D-M(CRT) | CM-D-M(SAT) |
| Size | 152*152mm | ||
| Material | glass | ||
| Volume | 6ml | 11.3ml | 5.3ml |
| Residence time | 3.6s-60min | 6.78s-113min | 3.18s-53min |
| Temperature Range | -25C-195C | ||
| Operating Pressure | 0-20bar | ||
| Throughput | 0.1-100mL/minup to 6kg/h | ||

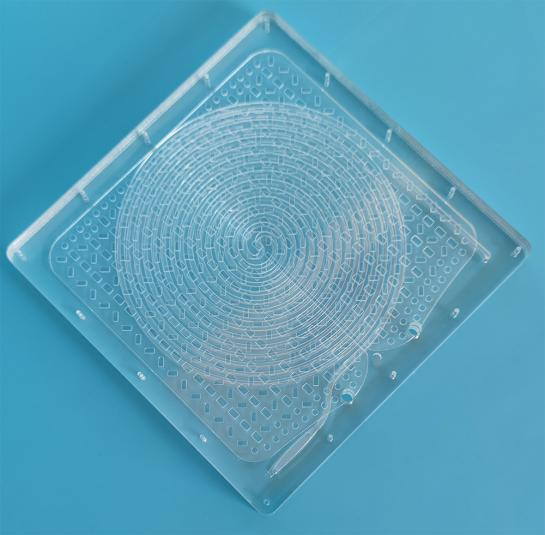

| Structure Type | / | Continue Rotation | Spindle Apparatus |
| Applicable reaction conditions | Liquid-liquid mixing and gas-liquid mixing | Used for continuous crystallization and high requirements on the consistency of solid particles, liquid-liquid, and liquid-solid type processes | For viscous liquids and easily agglomerated solids, this structure has the least boundary layer and the shortest distance for fluid mass transfer and dispersion |

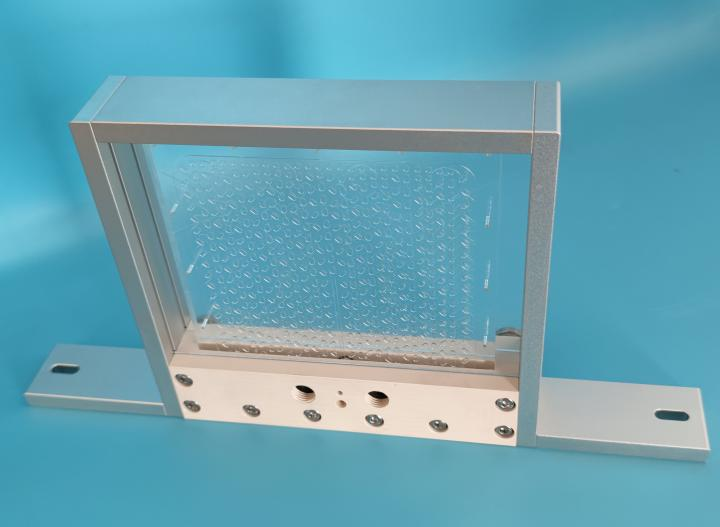

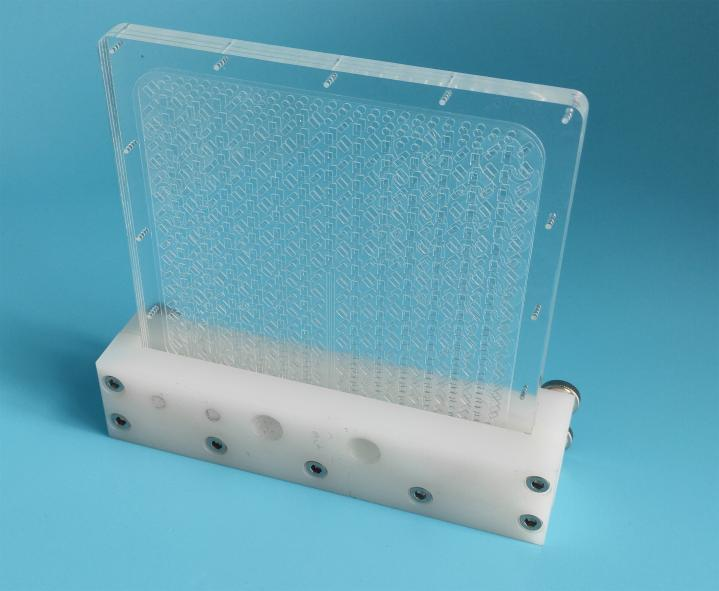

| Holder | PFA/PPS/PPS+PFAoption | ||
| Reagent import and export | Two in and one out or one in and one out (*Multiple imports can be customized) | ||
| Raw material import method | coaxial coating injection | ||
| Number of standard series reaction modules | 10 | ||
| Maximum number of modules connected in series | 12 | 14 | 14 |
FAQs of CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor:
Q: What is the capacity of the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor?
A: The capacity of the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor is 6 Milliliter (ML).Q: Is the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor energy efficient?
A: Yes, the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor is energy efficient due to its low energy consumption feature.Q: What is the warranty period of the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor?
A: The CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor comes with a 1-year warranty.Q: Is the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor computerized?
A: No, the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor is not computerized.Q: What is the general use of the CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor?
A: The CM-D Series Kilo-scale Glass Flow Reactor/Continuous flow reactor/Microfluidic reactor is primarily used for chemical research.Enter Buying Requirement Details
