High Temperature and High Pressure Reactor /Metal microflow reactor
2000.00 USD ($)/Unit
Product Details:
- Product Type Metal microflow reactor
- General Use chemical research
- Material Other
- Capacity 9 Milliliter (ML)
- Computerized No
- Automatic Yes
- PLC Control Yes
- Click to View more
X
High Temperature and High Pressure Reactor /Metal microflow reactor Price And Quantity
- 1 Unit
- 2000.00 USD ($)/Unit
High Temperature and High Pressure Reactor /Metal microflow reactor Product Specifications
- chemical research
- Yes
- No
- Other
- 9 Milliliter (ML)
- Yes
- Low Energy Consumption
- Other
- Metal microflow reactor
- 1
High Temperature and High Pressure Reactor /Metal microflow reactor Trade Information
- 10 Unit Per Month
- 1 Months
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East
- All India
Product Description
Summary

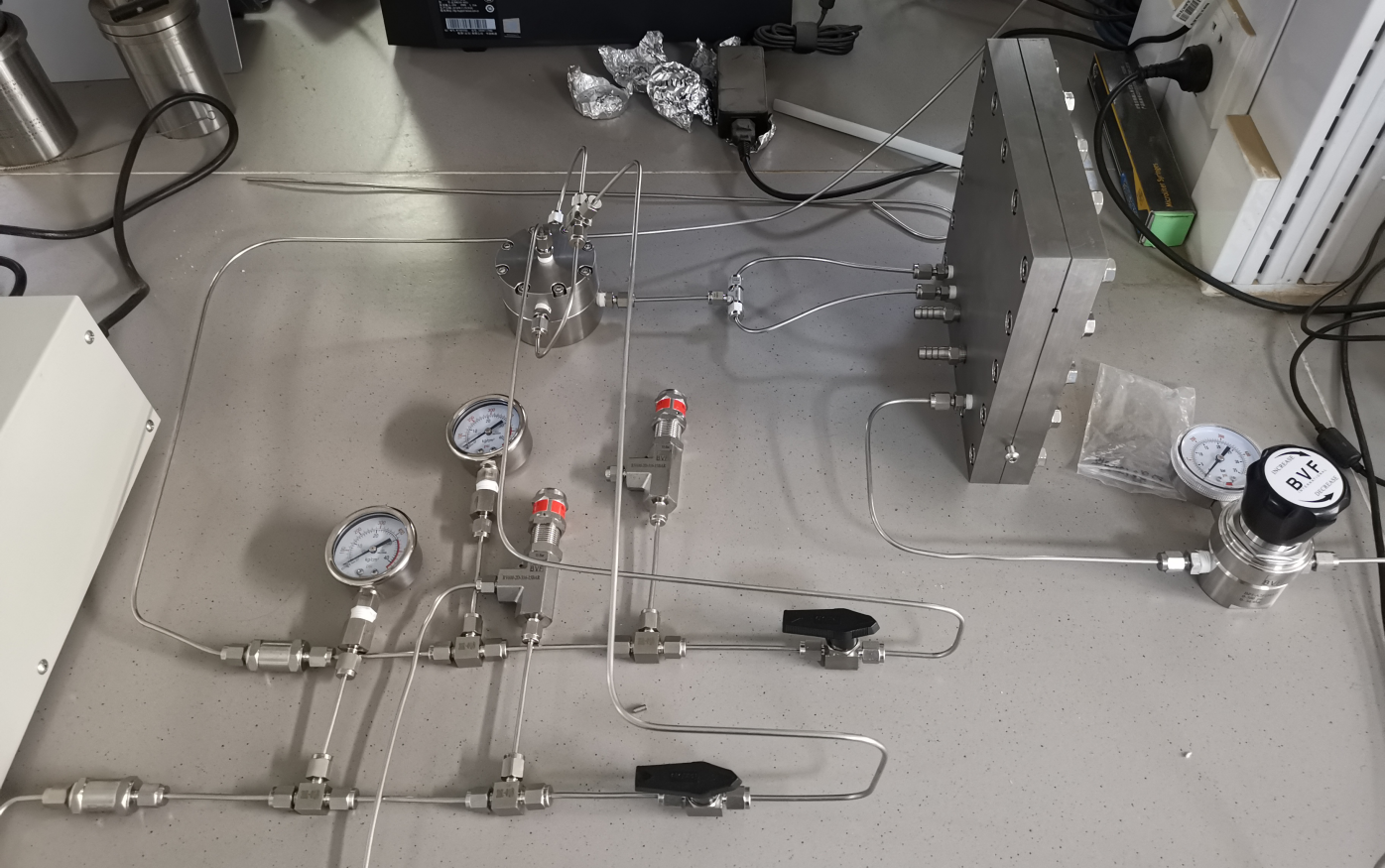

The welded metal micro-reactor adopts the latest seamless welding technology, which realizes the welding of the entire plane instead of the welding corners, and through a special process, it is possible to realize high-strength whole-surface welding without processing the weld seam, which greatly reduces the processing difficulty. The processing time is reduced, and the welding strength is much higher than that of resistance welding and butt welding.
The process side of the welded metal microreactor adopts the separation shear-combination-separation shear flow channel model, which takes into account the two factors of mass transfer and pressure drop, and maximizes the efficiency of the mass transfer process on the basis of minimizing the pressure drop. At the same time, heat exchange plates with special heat transfer structures are integrated on both sides of the process board. Through efficient two-way convection heat transfer, the heat in the reaction process is released, and the small-scale and pilot-scale reaction process is safely and stably realized.
Suitable for liquid-liquid, gas-liquid homogenous or non-homogenous reaction.
Applicable for industrial flow chemical synthesis & process development.
Specifications
1.Temperature range: -40C-300C
2.Pressure range: 0-7MPa
3.Single plate fluid holding capacity: 14ml
4.Channel length: 3m
5.Feature size depth: 1000um
6.Material of Construction: S.S 316L, titanium, Hc276, Monel, zirconium, etc.
Advantages
1.Safety: Small amount of liquid holdup in ml, and less consumption of raw materials.
2.High flexibility: Convenient reorganization of reaction modules with two or more feeding streams.
3.Internal design: Excellent heat and mass transfer.
Specifications
| CM-DM&PM Continuous Flow Microchannel Reactors(Metal) | ||
| Model | CM-DM | CM-PM |
| Processing methods | Welding Multi-layer flat forming Connection without seal ring | |
| Volume | 9ml | 80ml |
| Size | 21021040mm | 300*300*20mm |
| Throughput | 70T/Y | 1000T/Y |
| Material | TA2SUS316LHC276HB-22205904L etc | TA2HC276HB-22205904L etc |
| import and export | Two in one out/one in one out | |
| Interface | Thread + sealing ring/welding | |
| Temperature Range | -30-280/-60-450 | |
| Operating Pressure | 0-50bar /0-80bar | |
FAQs of High Temperature and High Pressure Reactor /Metal microflow reactor:
Q: What is the capacity of High Temperature and High Pressure Reactor/Metal microflow reactor?
A: The capacity of this product is 9 Milliliter (ML).Q: Is High Temperature and High Pressure Reactor/Metal microflow reactor computerized?
A: No, this product is not computerized.Q: What is the warranty period of High Temperature and High Pressure Reactor/Metal microflow reactor?
A: The warranty period of this product is 1 year.Q: What is the general use of High Temperature and High Pressure Reactor/Metal microflow reactor?
A: The general use of this product is chemical research.Q: Does High Temperature and High Pressure Reactor/Metal microflow reactor consume less energy?
